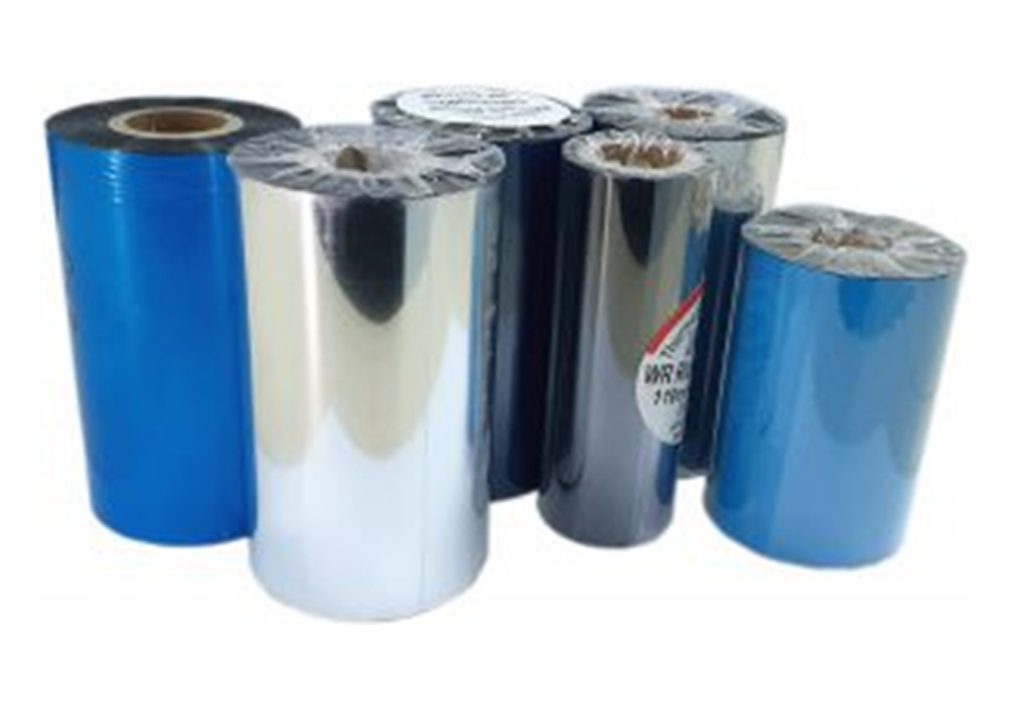

Wax resin is a type of thermal transfer ribbon in which the resin component makes up a higher percentage than wax, though not the majority. As a result, wax resin has a higher melting point, offers stronger adhesion, and produces sharper, more durable print quality. It also provides superior resistance to scratching, chemicals, and solvents. These enhanced features contribute to its relatively higher cost.
Wax resin ribbons are compatible with various label materials, including standard paper labels, tear-resistant labels, and PVC (synthetic) labels.
Ideal usage environments for wax resin ribbons
Wax resin ribbons are especially suitable for industrial environments, pharmaceutical warehouses, cold storage facilities, and for printing shipping or product labels. Thanks to their high resistance to solvents, heat, and physical impact, they are ideal for challenging conditions.
At Navi Label Solutions, we offer a specialized wax resin ribbon designed for use in cold storage warehouses and even in environments where products are submerged in water.
Technical specifications
| Feature | Details |
|---|---|
| Ink composition | Balanced mix of wax and resin |
| Shelf life | Up to 10 years in dry conditions |
| Cost | Moderate |
| Compatible label materials | Standard paper, weather-resistant decals, fabric labels, etc. |
| Recommended usage conditions | Indoor, light abrasion resistance |
| Printhead durability | Medium (melting point around 75°C / 167°F) |
| Carrier | PET Film |
| Base film thickness | 4.5 µm ± 0.1 µm |
| Color | Black |
| Ink thickness | 2.6 µm ± 0.2 µm |
| Ink melting point | 72°C / 161.6°F |
| Optical density | ≥ 1.9 |
| Printing speed | Up to 10 ips (inches per second) |
| Backcoating | Extends printhead life to 3,000,000 linear inches |
| Chamber test result | Withstood 60°C (140°F) for 30 hours with no blocking observed |
Printer compatibility
Wax resin ribbons are compatible with a wide range of barcode printers, including but not limited to:
Zebra, Datamax, Samsung Bixolon, Avery, Toshiba, Sato, Argox, TSC, Godex, Sewoo.
They can be used with both Face Out and Face In configurations.
Applications
Wax resin ribbons are commonly used for printing barcodes, text, and symbols on a wide range of labels. Applications include:
- Warehouse inventory labels
- Shipping and distribution labels
- Product identification
- Warning signs, logos, product bags, and crate tags
- Secondary/distribution labels
Preferred by leading printer manufacturers, wax resin ribbons offer sharp print quality, enhanced printhead protection, and have become a reliable standard for high-performance labeling needs.
Why choose Navi Label Solutions
Navi Label Solutions is a trusted provider of premium label materials, printing ribbons, and label printing services at competitive prices. We are committed to delivering both quality products and excellent service to ensure the best experience for our customers.
If you're interested in purchasing wax resin ribbons or learning more about our solutions, feel free to contact us directly.
